Victaulic Layflat Couplers are specialized fittings designed to connect layflat hoses, which are flexible hoses commonly used in applications like firefighting, irrigation, and industrial pumping.

Available in 8″, 10″ and 12″

Product Specifications

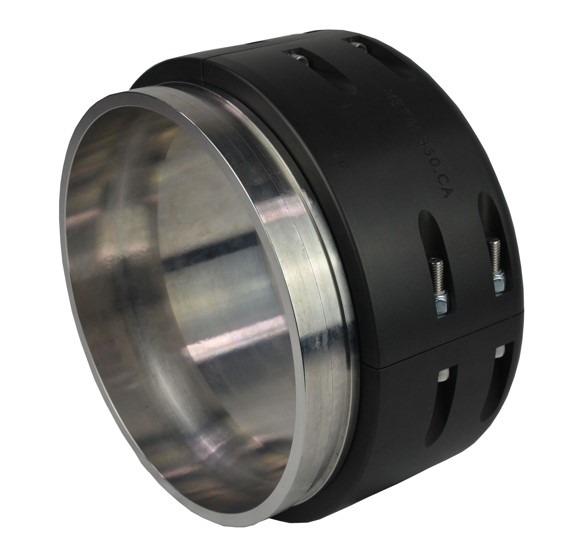

Part # – M3FRV12
12” Victaulic Lay-flat Hose Coupler

  •  300 psi (tested pressure 900 psi)
  • A356.2 aluminum barb
  • A356.2 aluminum segment set
  • Bolts, 3/8”-16 X 2” stainless
  • Anodizing, MIL-A-8625 Type III Class 1 (optional)
  • Victaulic clamp (not included in assembly)
  • 14” outside diameter with TPU hose installed

Note: Hose holding strength is subject to type of hose and hose wall thickness.
Make sure segment bolts are sufficiently tightened to hold hose on barb.

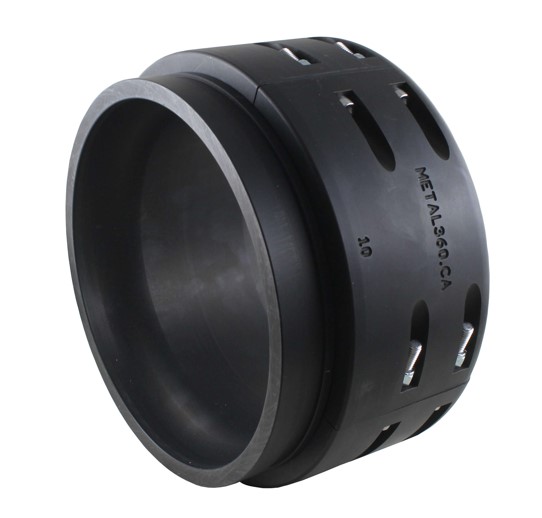

Part # – M3FRV10SSA
10” Victaulic Layflat Hose Coupler
Produced Water Application

  • rated 300 psi (tested pressure 900 psi)
  • 316 stainless steel barb
  • A356.2 aluminum segment set
  • Bolts, 3/8”-16 X 2” stainless
  • Anodizing, MIL-A-8625 Type III Class 1
  • Victaulic clamp (not included in assembly)

Note: Hose holding strength is subject to type of hose and hose wall thickness.
Make sure segment bolts are sufficiently tightened to hold hose on barb.

Manufacturer: Metal 360
